Name: Sidewalk Gaps - SW Impact District

Display Field: Road_Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

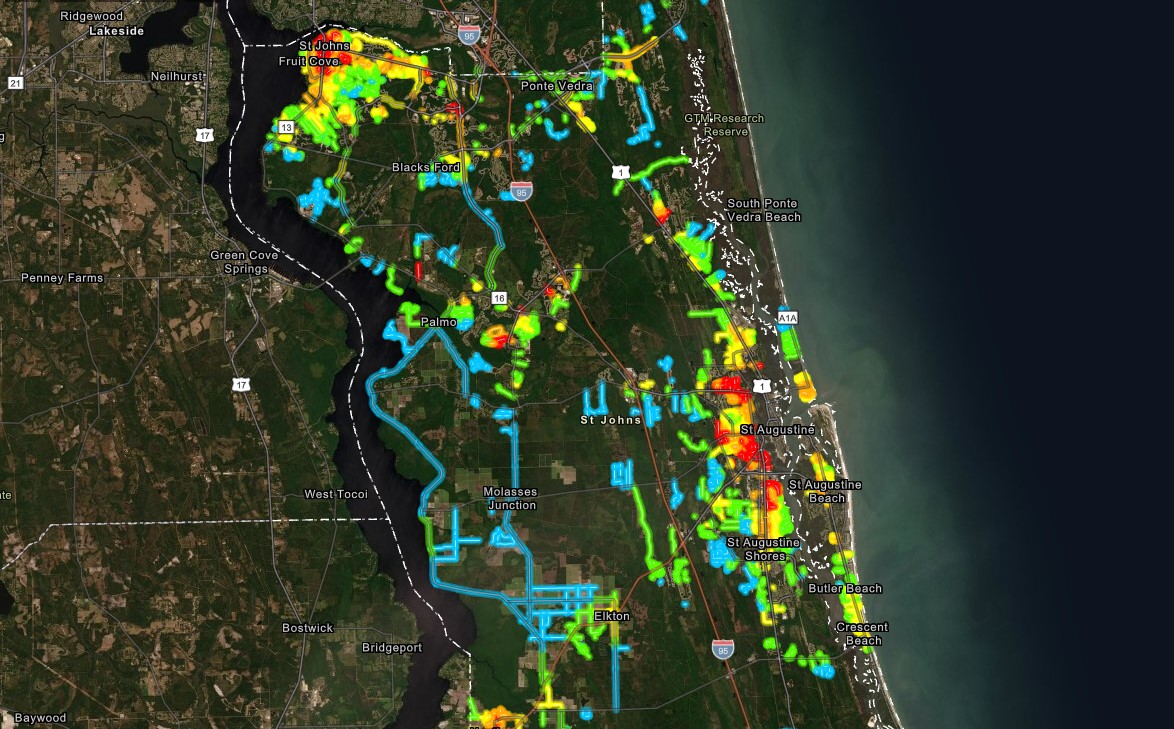

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN>Sidewalk suitability analysis based on St. Johns County local roads. Each local road contains a Gap ID, data attributed by its geographic location within data parameters, scoring index based on data parameters, and final scoring.</SPAN></P></DIV></DIV>

Service Item Id: bfba7189d7184f73aad94be48ca47ea7

Copyright Text: ETM, St. Johns County

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -81.64669772199994
YMin: 29.79415183100008
XMax: -81.26694794399998
YMax: 30.25297734700007
Spatial Reference: 104145  (6318)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Class Breaks Renderer:
Field: Step2_Total_Score
Min. Value: 12.0
ClassBreakInfos:
• Class Maximum Value: 14
  Label: 12 - 14
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 197, 255, 102]
  Width: 6
• Class Maximum Value: 18
  Label: 15 - 18
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 0, 102]
  Width: 6
• Class Maximum Value: 21
  Label: 19 - 21
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 0, 0, 102]
  Width: 6
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [255, 255, 255, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Tahoma
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 50000.0
Max. Scale: 0.0

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Gap_ID ( type: esriFieldTypeSmallInteger, alias: Gap ID )
• Road_Name ( type: esriFieldTypeString, alias: Road Name, length: 75 )
• Street_To ( type: esriFieldTypeString, alias: Street To, length: 75 )
• Street_From ( type: esriFieldTypeString, alias: Street From, length: 75 )
• Side_Road ( type: esriFieldTypeString, alias: Side Road, length: 3 )
• Type ( type: esriFieldTypeString, alias: Type, length: 15 )
• Roadway_Type ( type: esriFieldTypeString, alias: Roadway Type, length: 20 )
• SpeedLimit ( type: esriFieldTypeSmallInteger, alias: Speed Limit )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 200 )
• K8_Pro_Score ( type: esriFieldTypeSmallInteger, alias: K-8 Proximity Score )
• HS_Prox_Score ( type: esriFieldTypeSmallInteger, alias: High School Proximity Score )
• College_Prox_Score ( type: esriFieldTypeSmallInteger, alias: College Proximity Score )
• Parks_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Parks Proximity Score )
• Rec_CommCenter_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Recreation/Community Centers Proximity Score )
• Library_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Library Proximity Score )
• Transit_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Transit Proximity Score )
• Commercial_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Commercial Area Proximity Score )
• Healthcare_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Healthcare Proximity Score )
• Office_Prox_Score ( type: esriFieldTypeSmallInteger, alias: Office Proximity Score )
• Sig_Connectivity_Score ( type: esriFieldTypeSmallInteger, alias: Significant Connectivity Score )
• OtherSideOfStreet_Score ( type: esriFieldTypeSmallInteger, alias: Other Side of Street Presence Score )
• SpeedLimit_Score ( type: esriFieldTypeSmallInteger, alias: Speed Limit Score )
• Ped_Crash_History_Score ( type: esriFieldTypeSmallInteger, alias: Pedestrain Crash History Score )
• PedCrash_Count ( type: esriFieldTypeSmallInteger, alias: Pedestrian Crash Count )
• Gap_Length ( type: esriFieldTypeDouble, alias: Gap Length )
• OtheSideOfStreet_Comments ( type: esriFieldTypeString, alias: Other Side of Street Presence Comments, length: 255 )
• OtherSideOfStreet_Presence ( type: esriFieldTypeString, alias: Other Side of Street Presence, length: 255 )
• Road_Segment_Length ( type: esriFieldTypeDouble, alias: Road Segment Length )
• Significant_Connectivity_Calc ( type: esriFieldTypeDouble, alias: Significant Connectivity Percentage )
• AADT_ ( type: esriFieldTypeInteger, alias: AADT )
• Traffic_Count_Score ( type: esriFieldTypeSmallInteger, alias: Traffic Count Score )
• Pop_Dens_Score ( type: esriFieldTypeInteger, alias: Population Density Score )
• Zero_Car_Households_Score ( type: esriFieldTypeSmallInteger, alias: Vehicle Ownership Score )
• MedHH_Income_Score ( type: esriFieldTypeSmallInteger, alias: Median Household Income Score )
• Step1_Total_Score ( type: esriFieldTypeSmallInteger, alias: Step 1 Total Score )
• Pop_Dens ( type: esriFieldTypeDouble, alias: Population Density )
• Zero_Car_Households ( type: esriFieldTypeSmallInteger, alias: Vehicle Ownership )
• MedHH_Income ( type: esriFieldTypeInteger, alias: Median Househould Income )
• CIP ( type: esriFieldTypeString, alias: CIP, length: 255 )
• Step ( type: esriFieldTypeString, alias: Step, length: 255 )
• Step2_Total_Score ( type: esriFieldTypeSmallInteger, alias: Step 2 Total Score )
• Bridge_Crossing_Score ( type: esriFieldTypeSmallInteger, alias: Bridge Crossing Score )
• Severe_Slope_Score ( type: esriFieldTypeSmallInteger, alias: Severe Slope Score )
• Easement_ROW_Score ( type: esriFieldTypeSmallInteger, alias: Easement or ROW Score )
• Stormwater_Score ( type: esriFieldTypeSmallInteger, alias: Stormwater Score )
• Tree_Removal_Score ( type: esriFieldTypeDouble, alias: Tree Removal Score )
• Utility_Score ( type: esriFieldTypeSmallInteger, alias: Utility Conflict Score )
• Pedestrian_Use_Score ( type: esriFieldTypeSmallInteger, alias: Pedestrian Use Score )
• Step2_Field_Comments ( type: esriFieldTypeString, alias: Step 2 Field Comments, length: 255 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• DIST ( type: esriFieldTypeSmallInteger, alias: Impact Fee District # )
• NAME ( type: esriFieldTypeString, alias: Impact Fee District Name, length: 10 )
• Survey ( type: esriFieldTypeString, alias: Survey Completed?, length: 50 )
• PMACComments ( type: esriFieldTypeString, alias: PMAC Comments, length: 500 )
• Sensitivities ( type: esriFieldTypeString, alias: Sensitivities, length: 500 )
• SJCComments ( type: esriFieldTypeString, alias: Staff Comments, length: 500 )
• PMACAuthDate ( type: esriFieldTypeDate, alias: PMAC Design / Perm. Auth, length: 8 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 50 )
• HYPERLINK ( type: esriFieldTypeString, alias: Smartsheet Link, length: 256 )
• Sch2Miles ( type: esriFieldTypeString, alias: Within 2 Miles of a School, length: 3 )
• SchQuarterMile ( type: esriFieldTypeString, alias: Within 1/4 Mile of a School, length: 3 )
• Step1Score2021 ( type: esriFieldTypeSmallInteger, alias: Step 1 Total Score 2021 )
• Step2Score2021 ( type: esriFieldTypeSmallInteger, alias: Step 2 Total Score 2021 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
